Product Description
Fits: Dodge Ram, 2500, 4WD, Diesel
Years: 2019,2020,2021,2022,2023
Lift kit comes RAW, bare metal, NO powder-coating

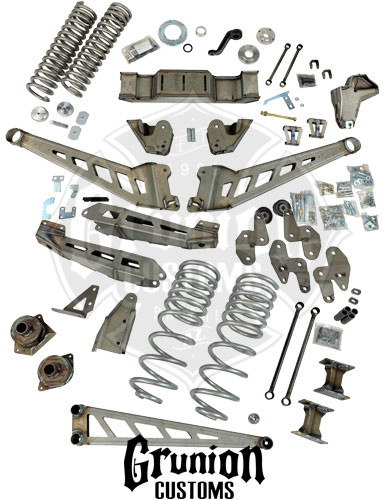

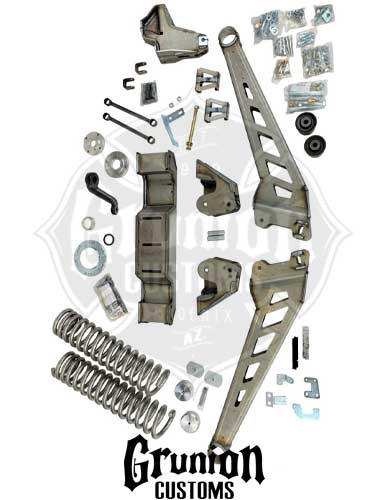

Includes:
- (2) Drop Radius Arms
- (2) Radius Arm Drop Brackets
- (2) Billet Face Plates for Radius Arm Drop Brackets
- (2) Front Lift Coils
- (2) Front Sway Bar Link Ends
- (2) Front Sway Bar End Link Extension Brackets
- (2) Rear Sway Bar End Links
- (1) Front Track Bar Bracket
- (2) Front Track Bar Bracket Cam Washers
- (1) Drop Pitman Arm (DC602)
- (2) Front Bump Stop Drop Brackets
- (2) Front Brake Line Brackets
- (1) Transfer Case Reclocking Ring
- (1) Billet Adaptor & Seal for Transfer Case
- (1) Transmission Crossmember
- (4) Rear 4-Link Drop Down Brackets
- (2) Rear Lower Link Reinforcement Arms
- (2) Rear Lift Coils
- (2) Rear Coil Spacers
- (1) Rear Track Bar Bracket
- (1) Rear Track Bar Bracket Brace
- (1) Boxed Crossover Track Bar Bracket Brace
- (2) Rear Brake Line Brackets
- (1) Rear Drive Line Spacer
- (2) Rear Bump Stop Drop Brackets
- Hardware
Notes:
If your vehicle has factory rear air suspension or is a 3500, you will have to fabricate or source out components for the rear.

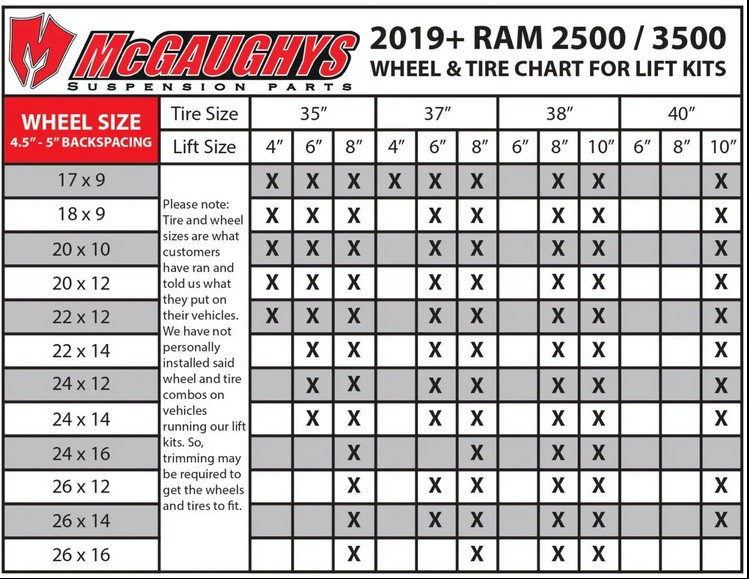

Over-sized tires and heavier wheels can cause premature wear on factory and aftermarket components like ball joints, bushings, tie-rod ends, wheel bearings, idlers arms, drive-lines, etc… You may need to replace / install new components sooner than factory recommendations based on the wheels and tires you choose. Please note that the heavier and wider wheels and tires combined with aggressive driving (off-road and on highways) will cause more wear on ALL moving parts, factory and aftermarket. Especially when vehicle is in 4wd or Auto-4wd / AWD modes.
