Product Description

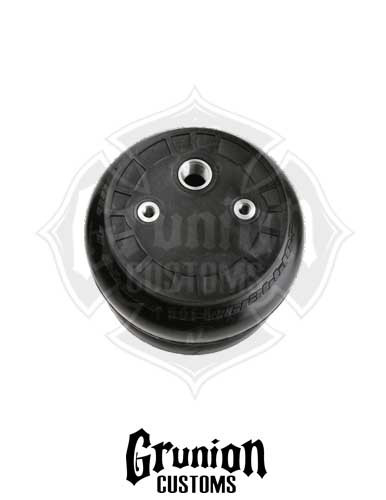

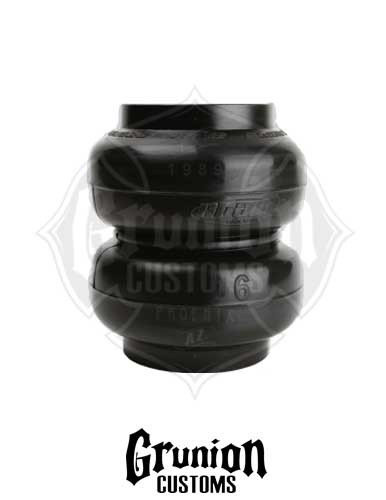

1 (One) SS-6 Air Bag / Spring
Features SS-6:
- 1/2" NPT Ports
- 30% Thicker Sidewall than RE Models
- Over 1" more Stroke than RE Models
- Up to 40% Lighter than RE Models
- Lightest Bag in its Class
- Linear and Off-Axis Actuation
- Non-Ballooning Operation
- Vibration Isolation
- More Responsive than Comparable Sized Air Springs
- Takes Less Air Pressure to Lift Same Load
Specs SS-6:
- Diameter @ 0 PSI - 6"
- Diameter @ Max PSI - 6"
- Stroke - 8.3"
- Max PSI - 250
- Plate Material - Composite
- Min Height - 2.7"
- Max Height - 11"
- Mounting Top - 2 @ 3/8" - 16
- Mounting Btm - 3 @ 3/8" - 16
- Air Port NPT - 1 @ 1/2"
- Replaces Firestone 255
- Replaces Goodyear 2B6
- Force to Collapse - 50 lbs
Replaces:
- Firestone 255
- Goodyear 2B6
