Product Description
- (2) 485C Stealth Black Compressors
- (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
- (2) Air Filter Assemblies
- (2) VIAIR Removable Filter Covers
- (2) Remote Mount Brackets
- (2) Sets of Remote Mount Fittings
- (2) Sets of Spare Air Filter Elements
- (2) Leader Hose Clips
- (6) Air Line Clips with Included Hardware
- (8) Sets of Nuts, Bolts, Washers and Lock Washers
- (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)
- (2) 40-Amp Relays
- (1) One Pressure Switch (165 PSI on, 200 PSI off)
400 SERIES STANDARD FEATURES: Oil-less Design, High Performance PTFE Piston Ring, Stainless Steel Valves, Moisture & Dust Resistant, Gear-less Direct Drive Motor, Anodized Aluminum Alloy Cylinder, Automatic Reset Thermal Overload Protector, Mounting Plates with Vibration Isolators, Inline Check Valve, Remote Mountable Intake Filter Assembly
The 485C Dual Performance Value Pack features two 12V 485C compressors with sleek head design, increased duty cycle and quieter dB levels. The 485C Stealth Black and comes equipped with either a Black sleeved stainless steel leader hose and an inline check valve.
The 485C features a sleek head design, increased duty cycle, and quieter dB levels. The 485C is equipped with either a Black sleeved stainless steel leader hose and an inline check valve.
Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
SPECIFICATIONS
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 100% @ 200 PSI
- Max. Working Pressure: 200 PSI
- Max. Air Tank Size: 10.0 Gallon
- Combined Max. Amp Draw: 44 Amps
- Ingress Protection Rating: IP67

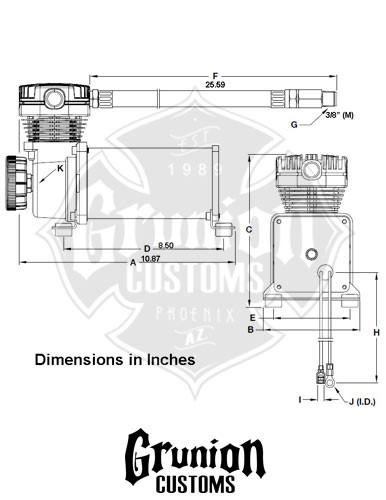

- Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit)
- Net Weight: 22.10 lbs.
PERFORMANCE DATA
| PSI | CFM | A | BAR | LPM | A |
|---|---|---|---|---|---|
| 0 | 2.24 | 12 | 0 | 70.0 | 12 |
| 10 | 1.84 | 14 | 1.0 | 51.0 | 15 |
| 20 | 1.75 | 16 | 2.0 | 47.0 | 16 |
| 30 | 1.67 | 17 | 3.0 | 44.0 | 18 |
| 40 | 1.61 | 18 | 4.0 | 41.0 | 20 |
| 50 | 1.54 | 19 | 5.0 | 38.0 | 21 |
| 60 | 1.47 | 20 | 6.0 | 35.0 | 21 |
| 70 | 1.42 | 21 | 7.0 | 32.0 | 22 |
| 80 | 1.36 | 21 | 8.0 | 29.0 | 22 |
| 90 | 1.30 | 22 | 9.0 | 27.0 | 22 |
| 100 | 1.23 | 22 | 10.0 | 25.0 | 23 |
| 110 | 1.17 | 22 | 11.0 | 22.0 | 22 |
| 120 | 1.11 | 22 | 12.0 | 21.0 | 21 |
| 130 | 1.06 | 22 | 13.0 | 21.0 | 21 |
| 140 | 1.01 | 23 | 13.8 | 21.0 | 21 |
| 150 | 0.97 | 22 | |||
| 160 | 0.92 | 22 | |||
| 170 | 0.88 | 22 | |||
| 180 | 0.84 | 21 | |||
| 190 | 0.77 | 21 | |||
| 200 | 0.73 | 21 |
* Supply Voltage: 13.8 Volts
FILL RATES
| 2.5 Gallon Tank | Fill Rate |
|---|---|
| 0 to 200 PSI | 4 min. 50 sec. (± 10 sec.) |
| 165 to 200 PSI | 1 min. 15 sec. (± 05 sec.) |
| 5.0 Gallon Tank | Fill Rate |
| 0 to 200 PSI | 9 min. 45 sec. (± 15 sec.) |
| 165 to 200 PSI | 2 min. 25 sec. (± 05 sec.) |
