Product Description
Call 602-258-0088 for Technical Support

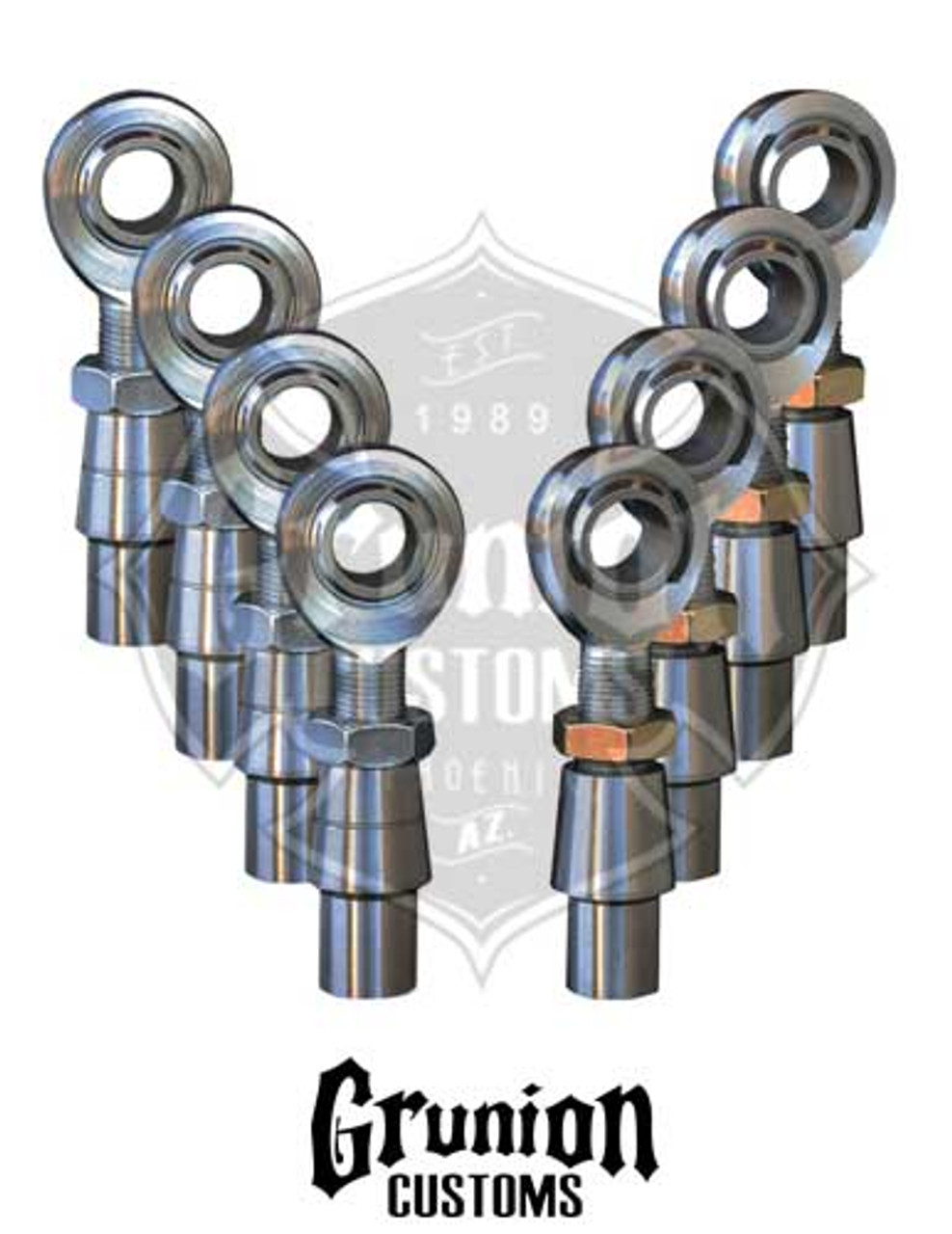

Kit Includes:
- 4 - Left Hand 3/4-16 Male Thread Heim Joint
- 4 - Left Hand 3/4-16 Weld In Female Thread Bung
- 4 - Right Hand 3/4-16 Male Thread Heim Joint
- 4 - Right Hand 3/4-16 Weld In Female Thread Bung
- 8 - Jam Nuts

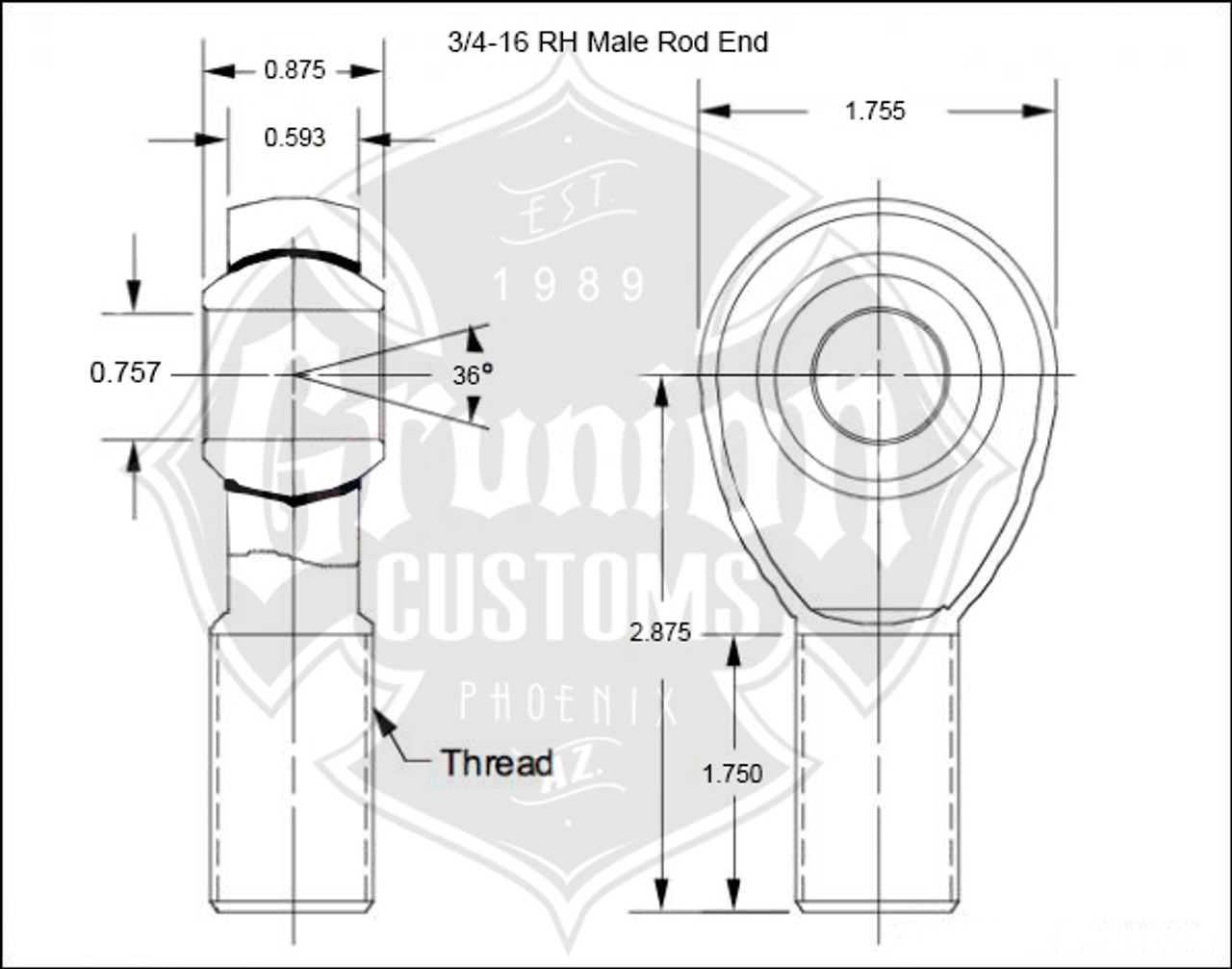

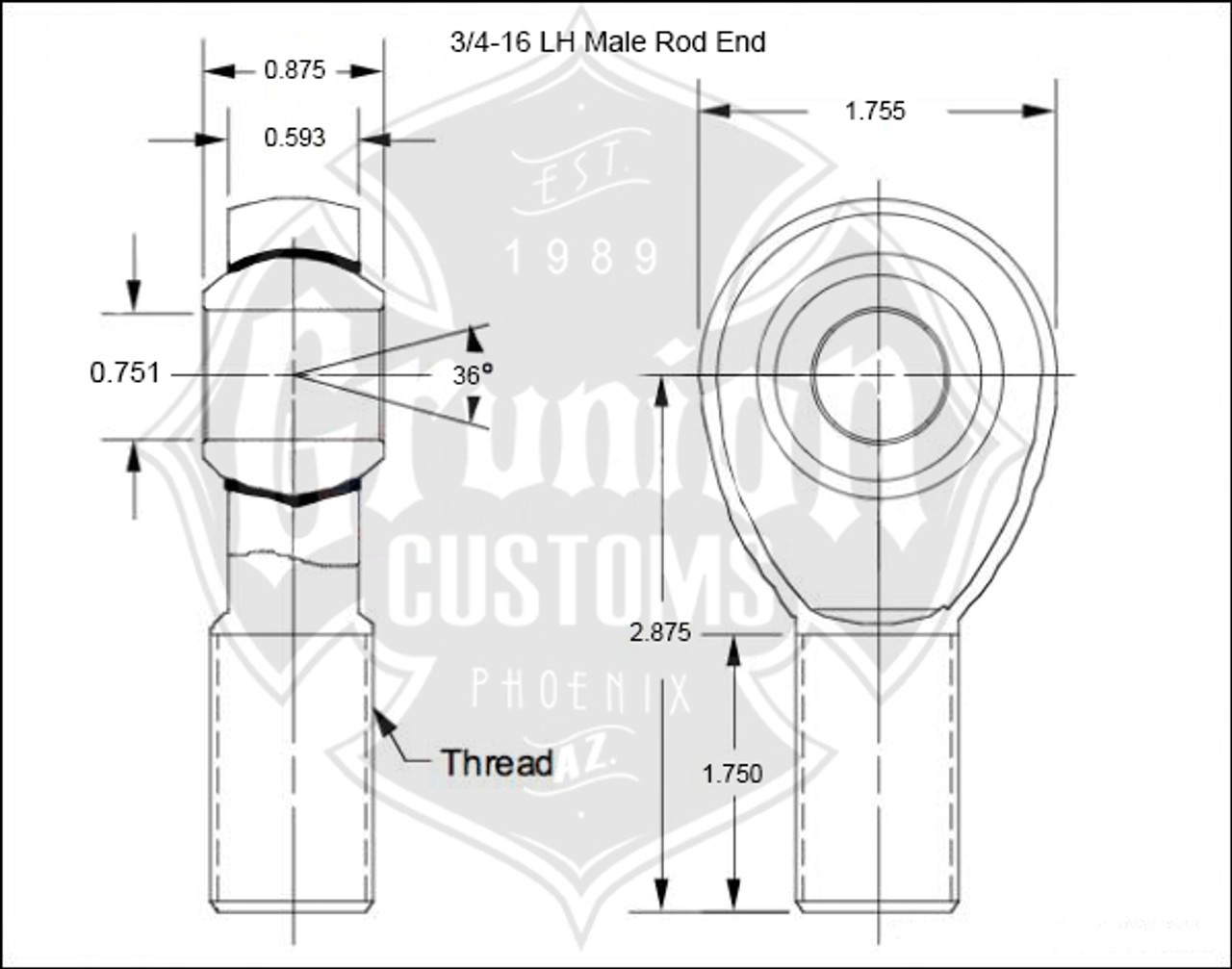

Rod End (Heim Joint) Specs:
- Housing - 4130 Chrome Moly Steel
- Housing Width (Diameter) - 1.755
- Thread Size - 3/4-16
- 36 Degrees Movement
- Thread Height - 1 3/4"
- Corrosion Resistant Finish
- Ball - Heat Treated, Hard Chrome Plated Bearing Steel
- Ball Bore - .75
- Ball Width - .875
- Bearing Race - Nylon
- Finish - Bright Polished Chrome
- Jam Nut - Zinc Clear
- Ultimate Radial Static Load:
- Left Hand - 27,019 lbs

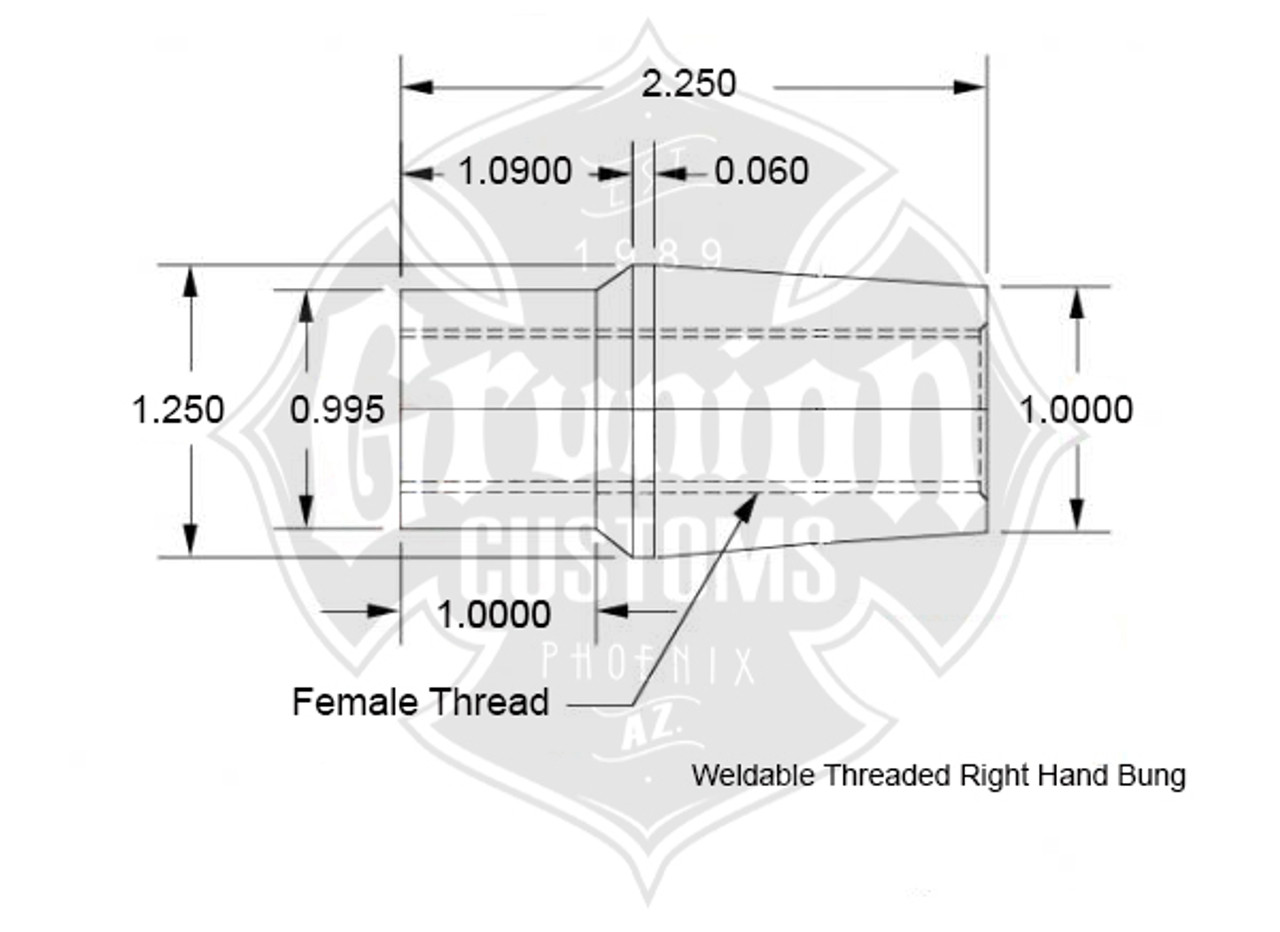

Bung Specs:
- Fits Tube OD - 1 1/4"
- Fits Tube Wall - .120
- Female Thread Size - 3/4-16
