Product Description
Call 602-258-0088 for Technical Support
Includes:

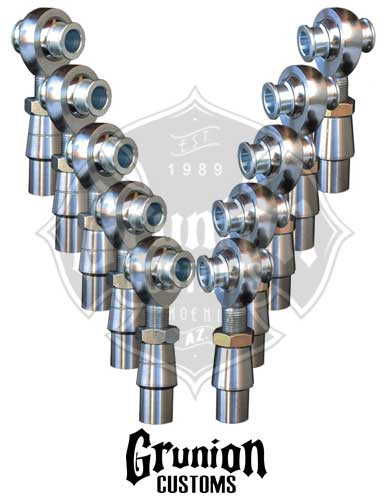

- Panhard Bar / Track Bar Kit and 4 Link Kit
- 5 - Left Hand 3/4-16 Male Thread Heim Joints, Female Thread Bungs, Misalignment Spacers and Jam Nuts
- 5 - Right Hand 3/4-16 Male Thread Heim Joints, Female Thread Bungs, Misalignment Spacers and Jam Nuts
Rod End (Heim Joint) Specs:
- Housing - 4130 Chrome Moly Steel
- Housing Width (Diameter) - 1.755
- Thread Size - 3/4-16
- 36 Degrees of Movement
- Thread Height - 1 3/4"
- Corrosion Resistant Finish
- Ball - Heat Treated, Hard Chrome Plated Bearing Steel
- Ball Bore - .75
- Ball Width - .875
- Bearing Race - Nylon
- Finish - Bright Polished Chrome
- Jam Nut - Zinc Clear
- Ultimate Radial Static Load - 27,019
Weld In Threaded Bung Specs:
- Fits Tube OD - 1.25
- Fits Tube Wall - .120
- Thread 3/4-16
Jam Nut Specs:
- Thread - 3/4-16
- Zinc Plated
- Width - 1-1/8
5/8" Misalignment Spacers:
- Low Carbon Steel, Plated Zinc Clear
- Inserted into Spherical Rod End (Heim Joint) Bores to increase misalignment or reduce the bore inside dimension
